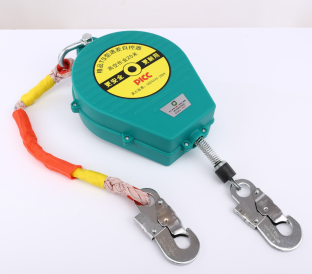

Anti falling device is a kind of protective product. It can quickly brake and lock the falling objects within a limited distance. It is suitable for the safety protection when the crane is lifting to prevent the accidental falling of the lifted workpiece. It can effectively protect the life safety of ground operators and the damage of the lifted workpiece. It is used in metallurgy, automobile manufacturing, petrochemical industry, engineering construction, electric power, ship, communication, pharmacy, bridge and other high-altitude workplaces.
|
Range Of Activities
|
3m
|
5m
|
7m
|
10m
|
15m
|
20m
|
30m
|
40m
|
|
Lock Speed
|
1m/s
|
|||||||
|
Locked Distance
|
≤0.2m
|
|||||||
|
Overall Damage Load
|
≥8.9kn
|
|||||||
|
Net Weight
|
2.1kg
|
2.3kg
|
3.2kg
|
3.3kg
|
4.8kg
|
6.8kg
|
11kg
|
21kg
|
Notice:
1. This product must be used high and low, and must be hung on a reinforced structure without sharp edges above the user.
2. Before using this product, check the appearance of the safety rope and try to lock it 2-3 times (method: pull out the safety rope at normal speed and release the sound of “da” and “da”. Pull the safety rope firmly to lock. When it is turned on, the safety rope will automatically return to the fall arrester. If the safety rope cannot be recovered safely, just pull out some safety ropes gently.) If there is any abnormality, please stop using it immediately!
2. Before using this product, check the appearance of the safety rope and try to lock it 2-3 times (method: pull out the safety rope at normal speed and release the sound of “da” and “da”. Pull the safety rope firmly to lock. When it is turned on, the safety rope will automatically return to the fall arrester. If the safety rope cannot be recovered safely, just pull out some safety ropes gently.) If there is any abnormality, please stop using it immediately!
3. When using this product for inclined operation, in principle, the inclination should not exceed 30 degrees. If it exceeds 30 degrees, consider whether it can hit the surroundingobjects.
4. The key parts of this product have been treated with wear resistance and corrosion resistance, and have been strictly
debugged. No need to add lubricant during use.
debugged. No need to add lubricant during use.
5. This product is strictly forbidden to be used under the twisted safety rope, and it is strictly forbidden to disassemble and modify. It should be stored in a dry, dust-free place.
Post time: Dec-13-2022
